Benhil Wrapping Machines

The reliable BENHIL filling and folding technology is suitable for wrapping pasty products with most different consistencies.  The product is filled into a preformed wrapper bag, subsequently folded, and calibrated. This filling and wrapping technology is the only one to guarantee safe and sharp-edged packaging for solid and very soft consistencies. The wrapping material may be parchment, aluminum-laminated foil, plastic-coated material, or plastic foil. Most machines are suitable for packing brick sizes, some also for special formats such as sticks, rolls, or oval packets. The multi-size machines offer quick and easy format changeover, either by replacing a complete set of size parts or by adjusting the packet height only.


Cup and Tub Filling

Copparapid 8270

The tub filling and closing machine COPPARAPID 8270 is designed in balcony construction which physically separates the product area (front of the machine) from the kinetics (rear of the machine). This avoids contamination of the filling zone with lubricants etc. and guarantees a high hygienic standard. Both the product and the drive areas are easily accessible, ensuring ergonomic operation as well as easy cleaning and maintenance. The sliding doors, which open upwards, underline this aspect. According to the product requirements the Copparapid 8270 can be equipped with servo-driven product specific dosing devices.
Details >

Copparapid 8205

Hundreds of times throughout the world the Copparapid 8205 has turned out to be a robust and reliable rotary filling machine. The essential products to be filled in preformed tubs are butter, margarine, and delicatessen salads.
Details >

Filling and Wrapping Machines

Multipack 8000

With an output of up to 250 packets per minute in twin execution and a filling weight and size range of 100 to 500 g, the new developed double cell machine Multipack 8000 achieves the highest output, worldwide, for filling and wrapping pasty type products. The size flexibility within the mentioned dosing range is unique for a high speed machine, offering our customers future possibilities to produce – within the range of 100 to 500 g – packets with different footprints. The Multipack 8000 is outstanding for its modern, attractive machine design and the intelligent control technology. In common with all the other OYSTAR Benhil filling and wrapping machines, the Multipack 8000 is characterized by exceptional filling accuracy, extremely high reliability, and a sound machine construction.
Details >    Brochure >

Multipack 5000

The MULTIPACK 5000 is a newly designed filling and wrapping machine. With an output of up to 135 packets per minute and a dosing range of 60 to 500 g, this single cell machine, for wrapping pasty type products, achieves the highest output for it’s machine type, worldwide. In view of our customers’ high hygiene standards, the MULTIPACK 5000 can be equipped with a CIP cleanable dosing system. In common with all the other BENHIL filling and wrapping machines, the MULTIPACK 5000 is characterized by exceptional filling accuracy, extremely high reliability, and a long service life.
Details >    Brochure >

Multipack 8345

The Multipack 8345 is a universal filling and wrapping machine for standard and special sizes. Completely different packet shapes and weights can be produced on one single machine. Size changeover is easy and quickly done.
Details >    Brochure >

Multipack 8345K

The special execution of the MULTIPACK 8345, the MULTIPACK 8345K, is additionally equipped with an integrated cartoner. It allows the wrapper bag to be introduced in an open folding box which is closed after filling. This option is particularly recommended for soft products (processed cheese, fresh cheese).
Details >    Brochure >

Multipack 8346

The Multipack 8346 is the special machine for family and commercial user packs. This rotary machine is particularly suitable for high filling weights (up to 2,500 g). The reliable bottom fold principle guarantees safe, sharp-edged packaging of even very soft products.
Details >

Multipack 8600

With an output of up to 300 packets per minute in twin execution and a filling weight and size range of 50 to 180 g, the new developed double cell machine Multipack 8600 achieves the highest output, worldwide, for filling and wrapping pasty type products. The size flexibility within the mentioned dosing range is unique for a high speed machine, offering our customers future possibilities to produce – within the range of 50 to 180 g – packets with different footprints. The Multipack 8600 is outstanding for its modern, attractive machine design and the intelligent control technology. In common with all the other OYSTAR Benhil filling and wrapping machines, the Multipack 8600 is characterized by exceptional filling accuracy, extremely high reliability, and a sound machine construction.
Details >

 Multipack 8360

It's robust construction, the main drive elements running in oil bath, and the computer-optimized kinematics guarantee the reliability of this machine type. It was designed for high speed stick packaging. For cartoning we recommend our fully automatic Cartomat 8563 and Cartomat 8562. All current stick sizes can be wrapped and packed in cartons according to the respective market requirements.
Details >

Multipack 8362

The rotary machine in twin execution forms, fills, and closes 2 packets per stroke, thus reaching a high output with a low number of strokes and at low wear. The modern, servo-driven paper feeding device accepts all current wrapping materials including plastic monofoil and the use of different date coders. Two different dosing systems - one of them CIP-cleanable - guarantee high filling precision. Lifting cells and special filling nozzles for each individual product ensure exact filling and well shaped packets.
Details >    Brochure >

Multipack 8380

This universal filling and wrapping machine is suitable for most diverse products, packet shapes, and sizes. There is a choice of product feeding systems depending on the product consistency, such as trough with feed worms, vertical funnel, or direct connection to the processing plant. Packaging according to the bottom fold or lengthside fold principles are possible. The reliable machine renowned worldwide is characterized by easy handling, short preparation times, and high productivity.
Details >    Brochure >

Moulding and Wrapping Machines

Ecopack F120

The ECOPACK F120 is a moulding and wrapping machine for standard packet sizes. The end fold principle of the ECOPACK machine range allows, depending on the specific size, packaging material savings up to 30% compared with bottom fold. Wrapping materials with high dead fold such as plastic wrappers made of PE, PP, or OPP can be used.
Details >    Brochure >

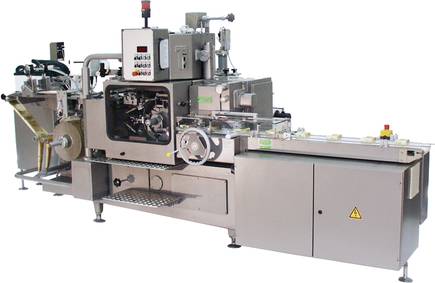

Ecopack F140

The ECOPACK F140 is a moulding and wrapping machine for standard packet sizes. The end fold principle of the ECOPACK machine range allows, depending on the specific size, packaging material savings up to 30% compared with bottom fold. Wrapping materials with high dead fold such as plastic wrappers made of PE, PP, or OPP can be used.
Details >    Brochure >

Ecopack FD165

The ECOPACK FD165 is a moulding and wrapping machine for standard packet sizes. The end fold principle of the ECOPACK machine range allows, depending on the specific size, packaging material savings up to 30% compared with bottom fold. Wrapping materials with high dead fold such as plastic wrappers made of PE, PP, or OPP can be used.
Details >    Brochure >

Filling and Wrapping Machines

Multipack 8304

The Multipack 8304 is a reliable rotary machine with sturdy design and central lubrication in closed oil bath. It is perfectly suited for packing miniportions at lower outputs. We offer two basic machine versions, with standard equipment for butter, margarine, and other pasty products, and in special execution for yeast packing.
Details >    Brochure >

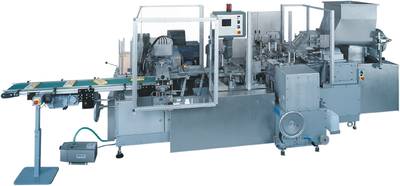

Multipack 8358

The Multipack 8358 is a high speed filling and wrapping machine for miniportions. 2 cubes are filled and closed at time, using the bottom fold principle. The low-wear volumetric dosing with twin chambers operating at "half-cycle" ensures high weight precision. Wrapper reloading intervals are considerably extended by using jumbo reels (Ø700 mm). Two different machine versions are offered, for edible fats and for pastes.

There is a choice of cartoners to be combined with and driven by the Multipack 8358 which basically depends on the requested carton size:

  • For edible fats: semi-automatic collating and stacking machine type 8535
  • For pastes: fully automatic Cartomat 8554, 8550

Details >

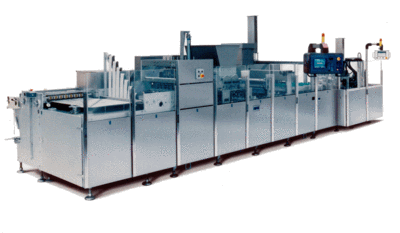

Minipack 8387

The Minipack 8387 is a fully automatic high speed filling and packaging line for miniportions. The integrated system of an inline machine with 6 or 8 tracks combines packaging material and product feed with product filling and final cartoning. Different, CIP-cleanable dosing devices fill products of various consistencies, from very soft to nearly solid, and also very dry products. In all of these cases, the filling precision is extremely high. Vertical separation of product area and kinematics (balcony construction) stands for user-friendly service and hygienic execution. Comfortable machine control and supervision by only one operator is ensured by the computer-aided machine operation system. For final cartoning we offer - depending on the individual requirements - several fully automatic cartoners (8550, 8554, 8562, 8563, 8570)
Details >

Filling and Wrapping Machines

Cartomat 8554

This machine type is a fully automatic wrap-around cartoner for miniportions. Configurations of 2 and more cubes can be packed into carton blanks. By means of a transport conveyor, the cubes are fed in 1 or more lanes to the cartoning machine, collated according to the preselected configuration, and stacked in 1 to 3 layers. The flat carton blanks are stackwise fed to the magazine of the machine, taken out individually, and folded around the preformed block of cubes. Carton closing options are cold glueing of the longitudinal side and tuck-in of the end flaps, or hotmelt closing, or a tamper evident closure. One machine can be equipped for several carton sizes. The Cartomat 8554 can be combined with and driven by the filling and wrapping machine Multipack 8358, or it can be delivered with an individual drive. The Cartomat 8550 as inverse machine version is working from left to right with operation on the right side. Due to the new servo drive technology, this cartoner can be equipped for 3 layer sizes. Depending on the configuration, it is particularly suitable for working in line with the high speed miniportion packaging machine Minipack 8387.
Details >

Cartomat 8562

This fully automatic wrap-around cartoner was designed to pack sticks, bricks, or filled boxes into dispensers, trays, or wrap-around cartons. The flat carton blanks are stackwise fed to the magazine of the machine, taken out individually, and introduced into the folding wheel. Packets are fed by a transport conveyor and positioned in the preformed carton by means of an elevating and feeding system. The carton is closed stepwise by tucking in the end flaps or subsequently glued using hotmelt. This machine is particularly suitable for long carton sizes and configurations with 1 or 2 layers. The Cartomat 8563 working from right to left usually is combined with the filling and wrapping machine Multipack 8360 for high speed stick packaging, the Multipack 8366 works in line with the Cartomat 8562 (left to right). All standard stick sizes and configurations can be produced. If combined with another filling machine, the Cartomat 8562 / 8563 has its individual drive.
Details >

Cartomat 8570

This servo-driven cartoner works according to the wrap-around principle and reaches an output of up to 165 boxes/min. The carton blanks are automatically transported through the machine. Size parts can quickly and easily be exchanged.
Details >

Semi Automatic Collating and Stacking Machines

Type 8501

This cartoner automatically collates and stacks filled and closed tubs or packets which are fed from the packaging machine. The machine operator has to dress the tubular carton and tilt it over the filling frame. The prepared block of tubs or packets is pushed through the frame into the carton (side-loading principle). The filled carton has to be closed by hand and pushed onto the roller off-conveyor. All machine movements are pneumatically driven. The machine is extremely versatile with regard to the number of layers.
Details >

Type 8529

Type 8529 is the collating and stacking machine for the standard German butter size and the usually packed 10 kg cartons. Packets are automatically collated and stacked, then the operator has to dress the tubular carton and tilt it over the block of packets which is waiting in the filling shoe. By automatically turning round the filling shoe, the carton glides onto the deposit where the flaps are manually closed and glued. Type 8529 usually is combined with the filling and wrapping machine Multipack 8380.
Details >

Type 8531

This flexible cartoner is available in 2 different versions, as bottom loader and as side loader. Packets or tubs can be collated and stacked in different configurations and numbers of layers. The operator has to dress the tubular carton and to tilt it over the prepared block of packets or tubs, respectively over the filling frame. The carton flaps are manually closed and the carton is manually removed from the deposit. On demand, the deposit can be replaced by a roller conveyor for further transport of the filled carton for example to a carton glueing unit.
Details >

Type 8535

The semi-automatic case packer type 8535 usually works in line with and is synchroneously driven by the high speed filling and wrapping machine for miniportions Multipack 8358. Butter portions are packed in cartons comprising 100 or 200 pieces. Depending on the customer's requirements, this case packer is available turning to the left or to the right side. The operator tilts the predressed carton over the collated and stacked block of portions and pushes it onto the block turning device which may be manually or pneumatically operated.
